Name: 1.5 Tph Biomass Briquette Machine Super -70
SKU: 5
Rating: 4.5 (50 reviews)

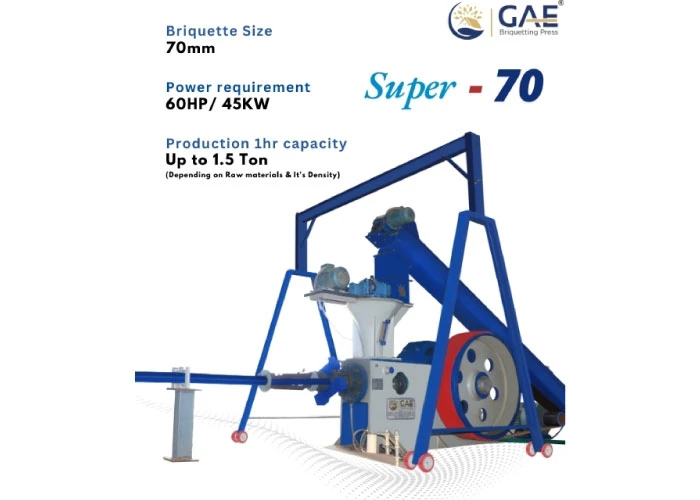

1.5 Tph Biomass Briquette Machine Super -70

Biomass Briquetting Press 70mm with Fly Wheels, Crank Shaft, Connecting Rod.

50HP Havells Electric Motor 1440RPM, 50/60HZ, 380V Supply, with Main Pulley & Nylon Belt.

Complete Lubrication System attached 2HP Havells Electric Motor along with Pump, Oil Filter, 5 HP Feeding Hopper, 2 HP Feeding Conveyor.

Heat Exchanger System for better cooling for lubricating oil pressure gauge.

Acrylic Doom Cover (Visualize the inner portion of Machine).

Hard Chrome on Piston up to 9 Filler.

Main Die Holder with Die Holder Clamp.

Product Specification

Raw Materials Can Be Used:

Groundnut Shell, Saw Dust, Sugarcane Bagasse, Rice Husk, Soya Bean Husk, Mustard Husk, Castor Seed Shell, Cotton Stalk, Cumin Waste, Almond Shell, Macoddana Shell, Jute Waste, Forest Leaves, Napier Grass, and other agricultural waste materials.

1500KG Biomass Briquette Machine – Reliable and Efficient Briquette for Industry

Type: Crank Type

Stroke: 150mm

RPM: 1440

Total Power Requirement: 60HP (42 kW)

Power Consumption: 25-30 Units/PHR

Production Capacity: Up to 1500 Kg/Hr (Depending on Density and Quality of Raw Material)

Finished Product Size: 70mm Die

Finished Product Shape: Cylindrical

Finished Product Length: 50 mm to 300 mm

Raw Material Form: 0 to 25mm Size Can Be Used Directly

Cooling Line 27 Feet.

Complete Foundation Drawing with Foundation Bolts.

Automatic Temperature Siren System with Alarm.
