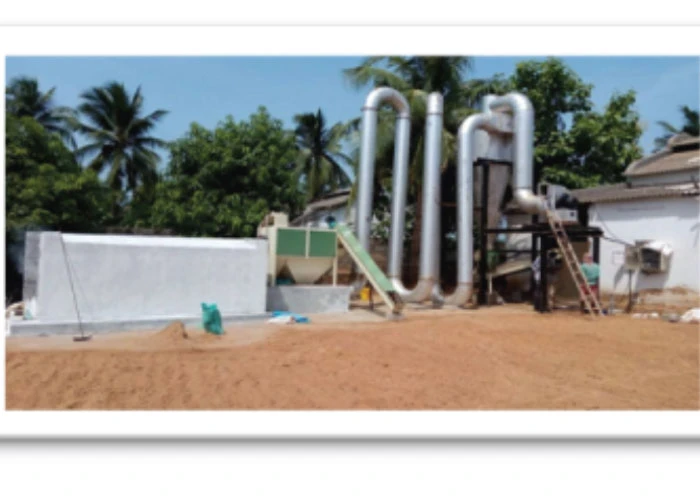

Flash Air Dryer


High Efficiency: Provides rapid drying with minimal energy consumption, making it cost-effective.

Compact Design: Occupies less space compared to traditional drying methods.

Time-Saving: Significantly reduces drying time due to the high-speed airflow mechanism.

Preserves Quality: Ensures uniform drying while retaining the quality and characteristics of the biomass.

Low Maintenance: Designed for easy operation and minimal maintenance.

Versatility: Suitable for various types of biomass, including sawdust, straw, bagasse, and more.

Environment-Friendly: Reduces dependency on traditional, polluting drying method.



Product Specification

Key Features of Biomass Flash Air Dryer

High-Speed Airflow: Efficiently removes moisture in a short time.

Temperature Control: Adjustable drying temperature to meet specific material requirements.

Robust Construction: Made of durable materials to withstand high temperatures and wear.

Energy Efficient Design: Incorporates advanced technology to reduce energy consumption.

Customizable: Can be tailored to specific capacity and material needs.

Dust and Pollution Control: Equipped with systems to minimize dust and emissions.

Total Power Requirement: 40HP (30 kW).

Raw Material Input Capacity: 1500 to 2000 Kgs.

Production Capacity: 1000 to 1500 Kg/Hr (Depending on Moisture and Quality of Raw Material).

Input Feeding Size: Less than 15mm

Pipe Thickness: 4mm

Pipe Length and Diameter: 100 ft and 300 mm Diameter

Number of Reduction Gears: 1 (30:01)

Temperature Sensor: 1 (Standard)

Material for Furnace: Briquette, Coal, Firewood, etc.

Material Used to Fire in 1 HR: 60–150 Kgs. (Depends on Material)

Raw Material GCV: 2500–4500 Kcal (Depends on Material)

Moisture: Should be in Material 10–12%

Furnace System Dimensions: 11 X 05 X 06 (L x W x H)
